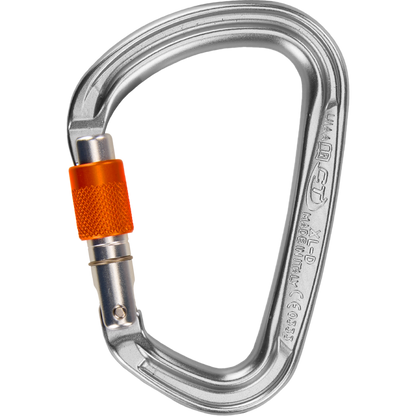

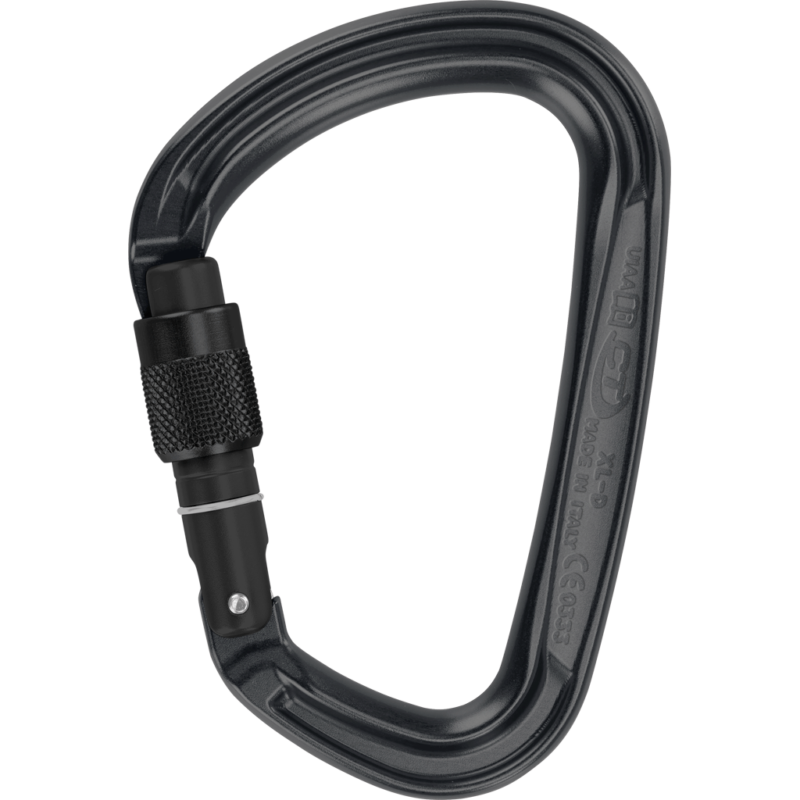

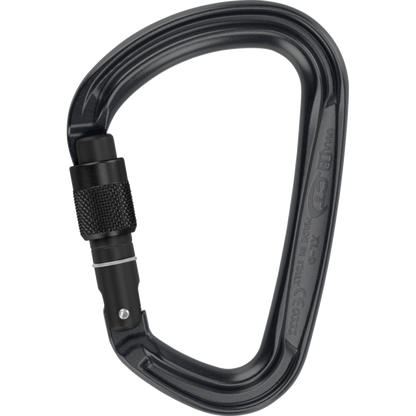

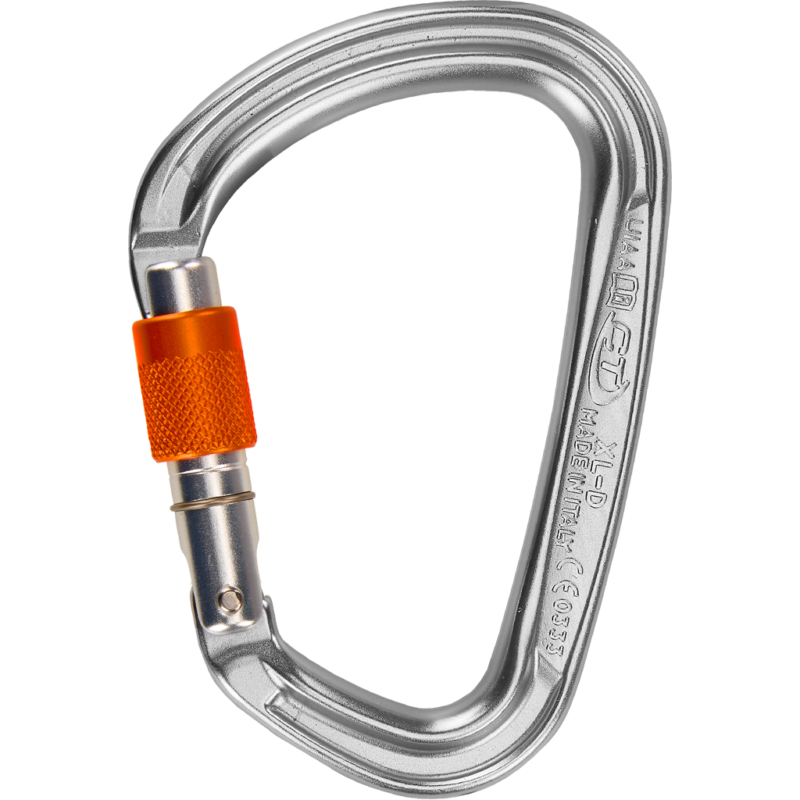

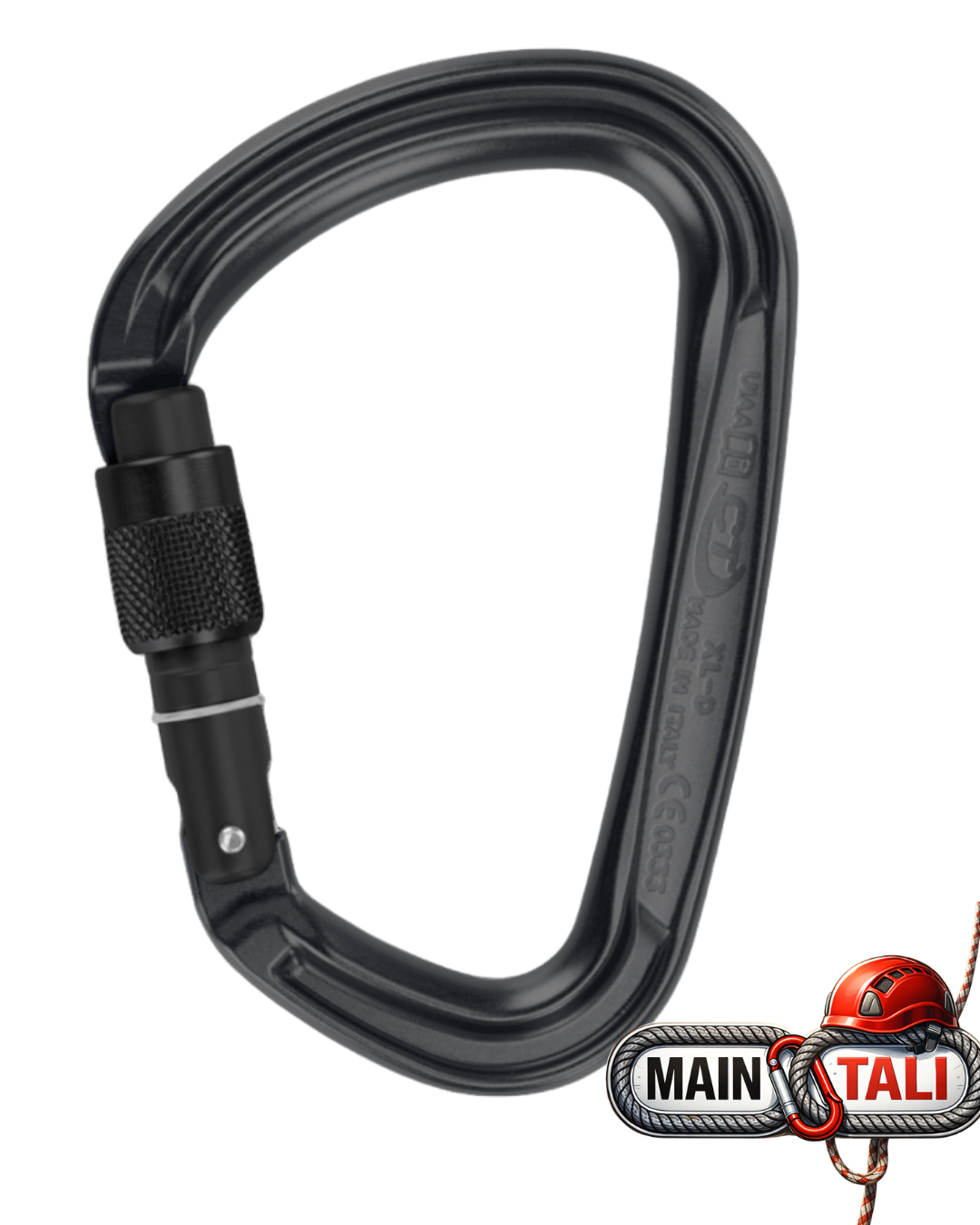

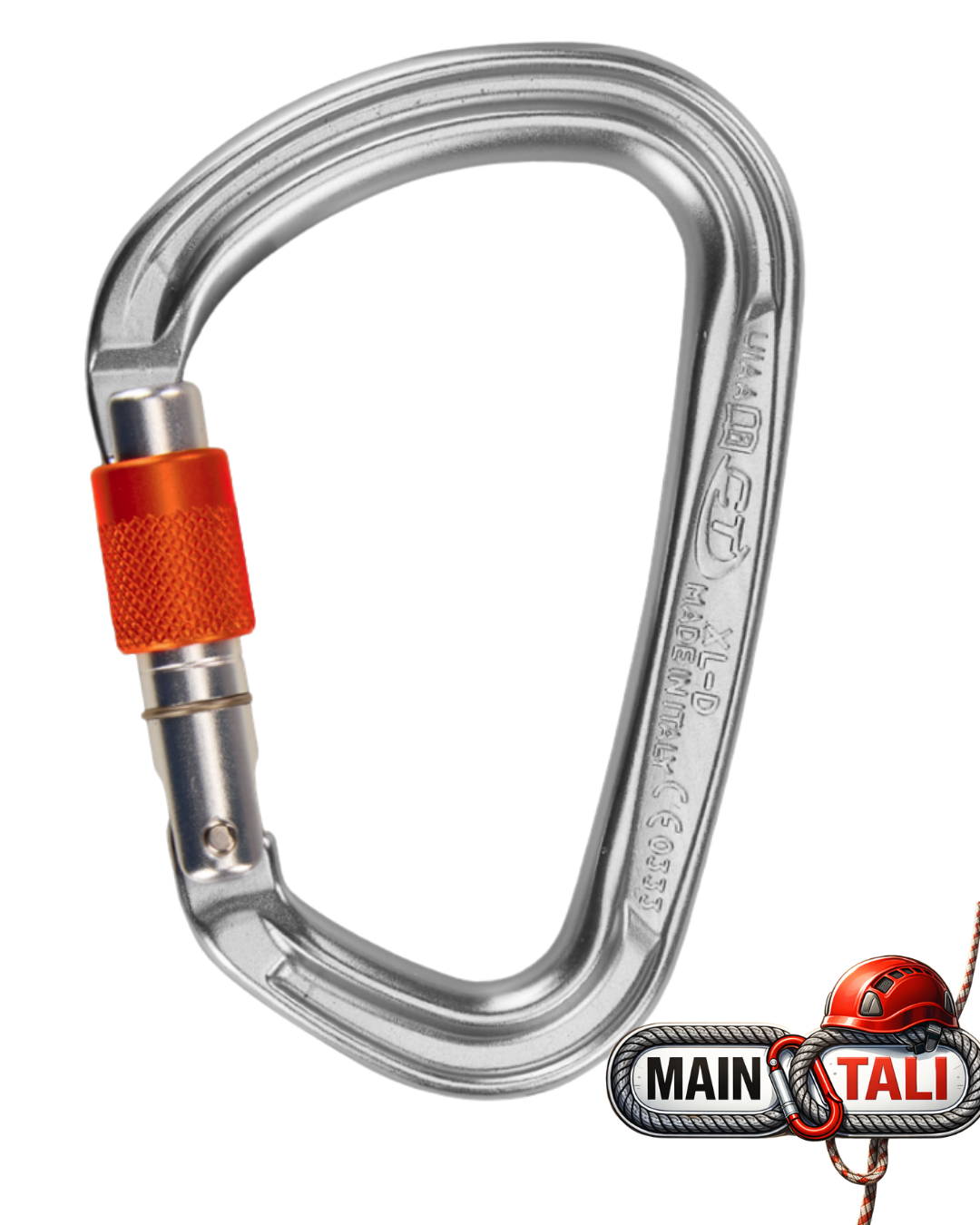

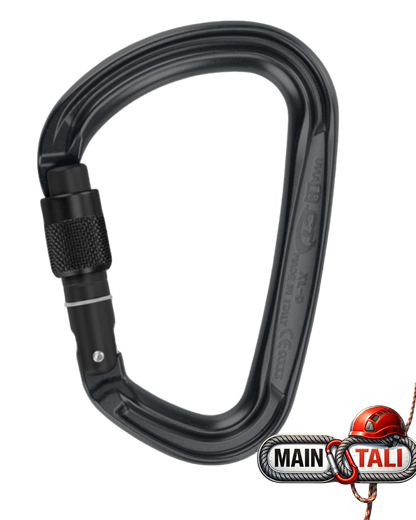

Light-alloy hot-forged connector with large capacity base and screw gate, ideal for the connection of multiple devices.
Main features:
- enhanced H-profile, for excellent weight-to-strength ratio;
- wide gate opening and large internal capacity;
- equipped with catch-free closure for effortless clipping;
- compatible with FIX PRO+ positioning device.
Technical features:
- Sizes - 120 X 80mm
- Breaking load major axis - 28kN
- Breaking load minor axis - 12kN
- Breaking load with open gate - 10kN
- Weight - 80g
- Maximum gate opening - 29mm
Standard and additional information
- EN 12275:2013-B
- EN 362:2004-B
- CE 0333
- UIAA
- MADE IN ITALY
